Monday, June 15, 2009
My Electronics Adventure, part 1
Ok, so I decided I need to suck at another hobby. I chose electronics this time. The first thing I did was to think of some unattainable goal. That will help me fail.
I have a vintage lathe that has few features. I've decided to add a quick change gear box (QCGB.) A QCGB is a gear-filled gizmo that connects a lathe's spindle to its leadscrew using any of dozens of ratios. It is is very much like a car transmission. The result is that the carriage moves a fixed amount for each revolution of the spindle. This is how threads on bolts are made.
I checked out buying a vintage QCGB but they are hundreds of dollars. My lathe may not even accept one unmodified. So I considered building one. The cost of the gears was prohibitive. So I considered making the gears and decided it wasn't happening - making gears is a lot of work and I don't have the tooling. In short, I ran into a dead end.
The other option to was to computerize the lathe. I don't want a computer in the shop as I program for a living - I don't want to do it at home, too. But perhaps I could sneak in some electronics.
And thus begins the story of my virtual QCGB. The basic idea is instead of having the spindle drive the leadscrew through a train of gears and a 'trasmission', I'll collect signals from the leadscrew and use these to drive a stepper motor which turns the leadscrew appropriately. Such conversions are actually pretty common. Most solutions, however, involve the use of a computer in the shop and are basically low-end CNC. My goal is a very spartan implementation so the computer isn't needed.
The only thing that is holding me back is that I know zip about electronics. Other than that, and my lack of knowledge of mechanics, I'm good. But my pal Marco is basically a mad scientist. When I mentioned my idea, he gave me a box of electronics parts and supplies. Then I bought a bunch of stuff he told me I needed including some common IC chips, proto boards, and selections of resistors and capacitors.
With some guidance from Marco and the web I made my first circuit. It just lit an LED. My next circuit used the ubiquitous 555 timer chip to make the LED pulse about once a second. No great shakes - examples are all over the web. I did the math just the same.
I liked that circuit, so I set it aside and pulled out another small protoboard. I added a 4040 counter chip. I salvaged some LEDs from a death ray or something Marco built back in the late '40s when he lived in Roswell. The end result is that I could use the 555 to drive the 4040 which in turn made some LEDs flash. Oooo pretty. Here's an early version:
Later on I pulled to 4040 (the larger IC to the left) off and moved it to the same board as the LEDs. Now I have a self-contained counter module to use for my next experiments.
The reason I started with the 555 and 4040 is that, when creating an electronic QCGB, you have to add an encoder wheel to the spindle. As the spindle turns, it generates a series of pulses. While I'll eventually have to work up the full pulse generation circuit, for now the 555 can simulate this. The 4040 is interesting to me not because it counts or makes LEDs light up, but because half of the real QCGB deals with dividing spindle speeds by 2, 4, 8, etc. The pins on the counter do exactly the same thing. Thus I have already done a proof-of-concept on an important part of my electronic QCGB. Referring to the picture above, the rightmost LED is on. This LED is connected to the 'divide by 2' pin on the 4040. Visually, that LED lights on every 2nd pulse from the 555. So if I wanted to slow the leadscrew down by half, I would tap the output from this pin. Similarly, by tapping the pin associated with the leftmost LED, I'd slow the leadscrew down by a factor of 128! I might use that to make a nice finishing pass, after all the heavy material removal has happened.
Lessons learned so far -
1. If you don't protect LEDs with a resistor, they die.
2. If you leave a 4040's reset pin floating (not connected to a ground) you'll get funky results.
3. Wire kits for prototype boards just rock.
My next series of experiments will likely be a proof-of-concept of an encoder wheel for the spindle. This is an opaque disk with equally spaced holes in it near the rim. As the wheel turns on the spindle, a stationary LED shines through the holes producing sort of a strobe effect. The light flashes fall on a phototransistor which generates a pulse we can use to drive the counter previously built. Will a good pulse be generated? How small can the hole be? How quickly can the holes pass in front of the LED and still let enough light through to produce a usable pulse?
I haven't a clue. Yet.
I have a vintage lathe that has few features. I've decided to add a quick change gear box (QCGB.) A QCGB is a gear-filled gizmo that connects a lathe's spindle to its leadscrew using any of dozens of ratios. It is is very much like a car transmission. The result is that the carriage moves a fixed amount for each revolution of the spindle. This is how threads on bolts are made.
I checked out buying a vintage QCGB but they are hundreds of dollars. My lathe may not even accept one unmodified. So I considered building one. The cost of the gears was prohibitive. So I considered making the gears and decided it wasn't happening - making gears is a lot of work and I don't have the tooling. In short, I ran into a dead end.
The other option to was to computerize the lathe. I don't want a computer in the shop as I program for a living - I don't want to do it at home, too. But perhaps I could sneak in some electronics.
And thus begins the story of my virtual QCGB. The basic idea is instead of having the spindle drive the leadscrew through a train of gears and a 'trasmission', I'll collect signals from the leadscrew and use these to drive a stepper motor which turns the leadscrew appropriately. Such conversions are actually pretty common. Most solutions, however, involve the use of a computer in the shop and are basically low-end CNC. My goal is a very spartan implementation so the computer isn't needed.
The only thing that is holding me back is that I know zip about electronics. Other than that, and my lack of knowledge of mechanics, I'm good. But my pal Marco is basically a mad scientist. When I mentioned my idea, he gave me a box of electronics parts and supplies. Then I bought a bunch of stuff he told me I needed including some common IC chips, proto boards, and selections of resistors and capacitors.
With some guidance from Marco and the web I made my first circuit. It just lit an LED. My next circuit used the ubiquitous 555 timer chip to make the LED pulse about once a second. No great shakes - examples are all over the web. I did the math just the same.
I liked that circuit, so I set it aside and pulled out another small protoboard. I added a 4040 counter chip. I salvaged some LEDs from a death ray or something Marco built back in the late '40s when he lived in Roswell. The end result is that I could use the 555 to drive the 4040 which in turn made some LEDs flash. Oooo pretty. Here's an early version:
Later on I pulled to 4040 (the larger IC to the left) off and moved it to the same board as the LEDs. Now I have a self-contained counter module to use for my next experiments.
The reason I started with the 555 and 4040 is that, when creating an electronic QCGB, you have to add an encoder wheel to the spindle. As the spindle turns, it generates a series of pulses. While I'll eventually have to work up the full pulse generation circuit, for now the 555 can simulate this. The 4040 is interesting to me not because it counts or makes LEDs light up, but because half of the real QCGB deals with dividing spindle speeds by 2, 4, 8, etc. The pins on the counter do exactly the same thing. Thus I have already done a proof-of-concept on an important part of my electronic QCGB. Referring to the picture above, the rightmost LED is on. This LED is connected to the 'divide by 2' pin on the 4040. Visually, that LED lights on every 2nd pulse from the 555. So if I wanted to slow the leadscrew down by half, I would tap the output from this pin. Similarly, by tapping the pin associated with the leftmost LED, I'd slow the leadscrew down by a factor of 128! I might use that to make a nice finishing pass, after all the heavy material removal has happened.
Lessons learned so far -
1. If you don't protect LEDs with a resistor, they die.
2. If you leave a 4040's reset pin floating (not connected to a ground) you'll get funky results.
3. Wire kits for prototype boards just rock.
My next series of experiments will likely be a proof-of-concept of an encoder wheel for the spindle. This is an opaque disk with equally spaced holes in it near the rim. As the wheel turns on the spindle, a stationary LED shines through the holes producing sort of a strobe effect. The light flashes fall on a phototransistor which generates a pulse we can use to drive the counter previously built. Will a good pulse be generated? How small can the hole be? How quickly can the holes pass in front of the LED and still let enough light through to produce a usable pulse?
I haven't a clue. Yet.
Sunday, June 14, 2009
Replacing Atlas/Craftsman Part 9-11
The Atlas/Craftsman 12" metal lathe is a decent lathe for what it is - an entry level machine for the home shop hobbyist. This lathe was manufactured to meet a price point, not to be a professional quality lathe. One of the innovations employed in manufacture of this lathe was the use of a material called Zamak for many of the secondary parts such as change gears and handles. The idea was that die casting these parts from Zamak would save money and machining time. And it did.
Zamak, being an amalgam of zinc, aluminum, manganese, and copper is a reasonably durable alloy. It's stable, easy to cast, and plates well. Many common parts do very well when made of Zamac. But machines get bumped and banged. The Zamak parts broke much easier than their iron counterparts. When Atlas stopped making these lathes, inexpensive Zamak replacement parts largely disappeared too. Now the main assumption of Zamak - that replacement parts would be readily available and inexpensive - has become invalid. It's common to see Craftsman lathes will all manner of innovative replacements for broken Zamak parts. For example, when I bought my lathe the cross slide handwheel had been replaced with a water spigot knob.
But really, for the most part, the Zamak is ok. If a handle breaks after 70 years of use, well, you have a lathe, make another. There is one part, however, where the use of Zamak was downright egregious. And that is part 9-11, a housing that holds secure the pinion that connects the handwheel on the apron to rack. When you turn the handwheel, the carriage should move up and down the lathe bed. When part 9-11 breaks, and it will, parts fall out the bottom of the apron and your carriage gets all sad.
Here's a link to a document for my lathe. Refer to the "page 2" link - you can find part 9-11 at the bottom.

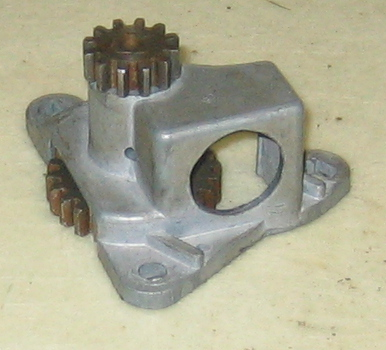

Here's a few images of part 9-11. This one doesn't fit my lathe, unfortunately. The lathe's original owner bought it without knowing that it fit a later model of the lathe.
The problem is this is a spindly part that gets a lot of lateral pressure applied to it. It never should have been made of Zamak, or at least not with this shape. The "legs" tend to break.
When I saw the part was missing, I checked Ebay, the easiest source for many Craftsman lathe parts. Since there is such a demand for 9-11 replacements the price is pretty high. I decided I would not pay top dollar for an antique Zamak part with a history of breaking. The only solution was to make a replacement.
Here's the diagram I worked from. All measurements are in decimal inches. Almost all measurements are multiples of 1/16". It was a simpler time.
The first image shows the bracket in place. There are three important things to note. First, notice the disruption of the aluminum where the axle passes through. That's because there is only a few mils of aluminum remaining there. Second, notice how the handwheel's small gear nestles in the angled area milled out of the bracket. Third, notice the poor fit of the large gear to the handwheel gear. The reason is in the notes below. Don't do what I did - I am still trying to remedy this.
Here's a view from the above front right, if it were in the apron. You can see the angled relief where the handwheel gear will fit.
Finally, here's a view from below. You can see the channel for the leadscrew.
Here are the instructions. The operations are all straight-forward. I had access to a mill. This would be hard to make otherwise.
Notes, in no particular order.
Zamak, being an amalgam of zinc, aluminum, manganese, and copper is a reasonably durable alloy. It's stable, easy to cast, and plates well. Many common parts do very well when made of Zamac. But machines get bumped and banged. The Zamak parts broke much easier than their iron counterparts. When Atlas stopped making these lathes, inexpensive Zamak replacement parts largely disappeared too. Now the main assumption of Zamak - that replacement parts would be readily available and inexpensive - has become invalid. It's common to see Craftsman lathes will all manner of innovative replacements for broken Zamak parts. For example, when I bought my lathe the cross slide handwheel had been replaced with a water spigot knob.
But really, for the most part, the Zamak is ok. If a handle breaks after 70 years of use, well, you have a lathe, make another. There is one part, however, where the use of Zamak was downright egregious. And that is part 9-11, a housing that holds secure the pinion that connects the handwheel on the apron to rack. When you turn the handwheel, the carriage should move up and down the lathe bed. When part 9-11 breaks, and it will, parts fall out the bottom of the apron and your carriage gets all sad.
Here's a link to a document for my lathe. Refer to the "page 2" link - you can find part 9-11 at the bottom.
Here's a few images of part 9-11. This one doesn't fit my lathe, unfortunately. The lathe's original owner bought it without knowing that it fit a later model of the lathe.
The problem is this is a spindly part that gets a lot of lateral pressure applied to it. It never should have been made of Zamak, or at least not with this shape. The "legs" tend to break.
When I saw the part was missing, I checked Ebay, the easiest source for many Craftsman lathe parts. Since there is such a demand for 9-11 replacements the price is pretty high. I decided I would not pay top dollar for an antique Zamak part with a history of breaking. The only solution was to make a replacement.
Here's the diagram I worked from. All measurements are in decimal inches. Almost all measurements are multiples of 1/16". It was a simpler time.
The first image shows the bracket in place. There are three important things to note. First, notice the disruption of the aluminum where the axle passes through. That's because there is only a few mils of aluminum remaining there. Second, notice how the handwheel's small gear nestles in the angled area milled out of the bracket. Third, notice the poor fit of the large gear to the handwheel gear. The reason is in the notes below. Don't do what I did - I am still trying to remedy this.
Here's a view from the above front right, if it were in the apron. You can see the angled relief where the handwheel gear will fit.
Finally, here's a view from below. You can see the channel for the leadscrew.
Here are the instructions. The operations are all straight-forward. I had access to a mill. This would be hard to make otherwise.
- Acquire the large gear, small gear, and axle you see in the 9-11 pictures above. If you have a broken 9-11, you can salvage these. You will need to get one of the gears off the axle. Try an arbor press. On the 9-11 in the pictures above, the gears are peened on.
- Make the aluminum block. The width is extremely important. If it's too wide the gears will pinch the bracket when pressed on.
- Mark the location of the 1/2" hole. This is likely the most important measurement.
- Bore the 1/2" hole.
- Mill away the relief for the large gear. The depth must be at least the thickness of the large gear and the handwheel gear.
- Mill the "ears" through which the 1/4" bolts will pass. The depth of these was determined by the length of the bolts I had available. YMMV. You may not even need to add the ears at all if you use long bolts.
- Mill the leadscrew relief channel. When the channel intersects the axle hole you can stop. Removing more will not help.
- Put the axle in the bracket and carefully press the gears onto it. Check for a good fit before doing so. This will be hard to lubricate so add some über grease to the axle now. NOTE - the axle is NOT symmetrical. Be sure you orient it correctly.
- Put some layout blue on the bracket where it touches the apron, where the 1/4" bolts will pass. Put spacers between the mating gears so they will mesh correctly. Many people use paper scraps. Push the bracket firmly into position on the lathe. The gears on the bracket should engage the rack and the handwheel gear. Have a helper mark the bolt hole locations using a transfer punch.
- Bore the two holes for the 1/4" bolts.
Notes, in no particular order.
- I don't know how long this part will last. I am an amateur. Caveat Emptor.
- The part I am showing is a replacement for part 9-11 from an Atlas/Craftsman 12" lathe made in about 1937. It has no powered crossfeed and a 5/8" leadscrew. If your lathe if newer or different, you'll certainly have to make changes. If you have an identical lathe, you'll probably have to make changes :-D
- As far as I know, the design is correct. But you can probably find 100 improvements.
- I made mine from aluminum scrap. If you have iron or steel, all the better.
- The biggest mistake I made was drilling the 1/4" holes too soon. This should be the last thing you do. Drilling them last allows you to position the bracket on the lathe in exactly the right spot. I drilled my holes first and had the unenviable task of making sure both gears and both bolts all lined up. They didn't. So I got out a file... It was a big time-sucking mistake.
- When you prepare the part for the final fit, pushing it upward will make it engage the rack. Pushing it back and forth will make it engage and disengage the handwheel's gear.
- From the front view, you see the channel at the bottom. That channel is necessary for leadscrew clearance. It channel will just intersect the 1/2" hole you bored for the axle. Yes, the part is nearly cut in two. The Zamak part also has a divot out of the axle area. Anyway, if you can reduce the width of the channel, you'll strengthen the part. I didn't have the tooling.
- Most of the dimensions are non-critical. You need to get the 1/2" axle hole pretty close. The width of the part is also critical or the gears will pinch it or slide back and forth. The milled area must be deep enough to accommodate the large gear that attached to the axle.
- Go slow when you press the large and small gears onto the 1/2" axle. Mine fit great - I got lucky. It's possible that if your bracket isn't wide enough the gears will be pressed against the aluminum and turn very stiffly. To be avoided.
